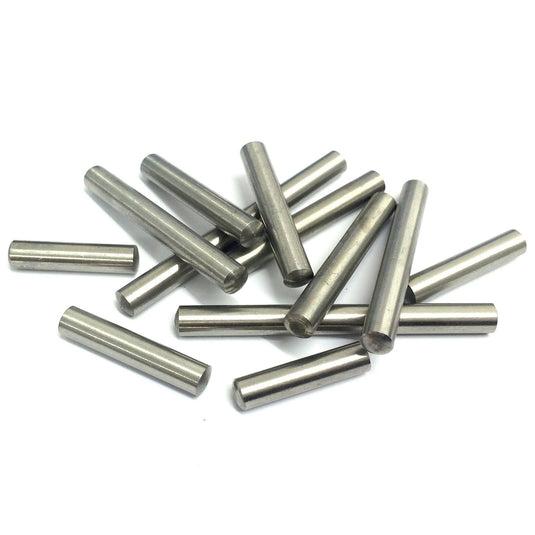

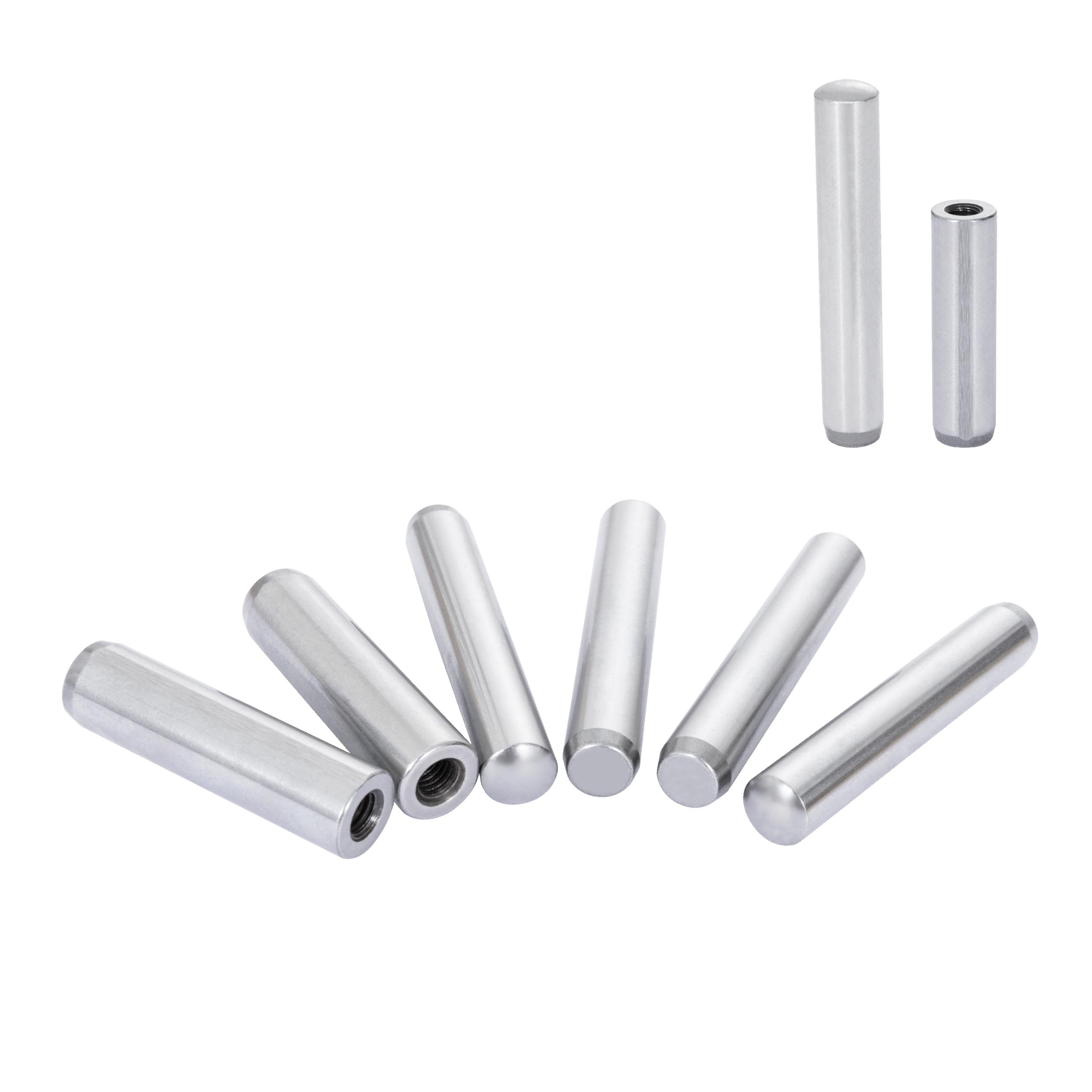

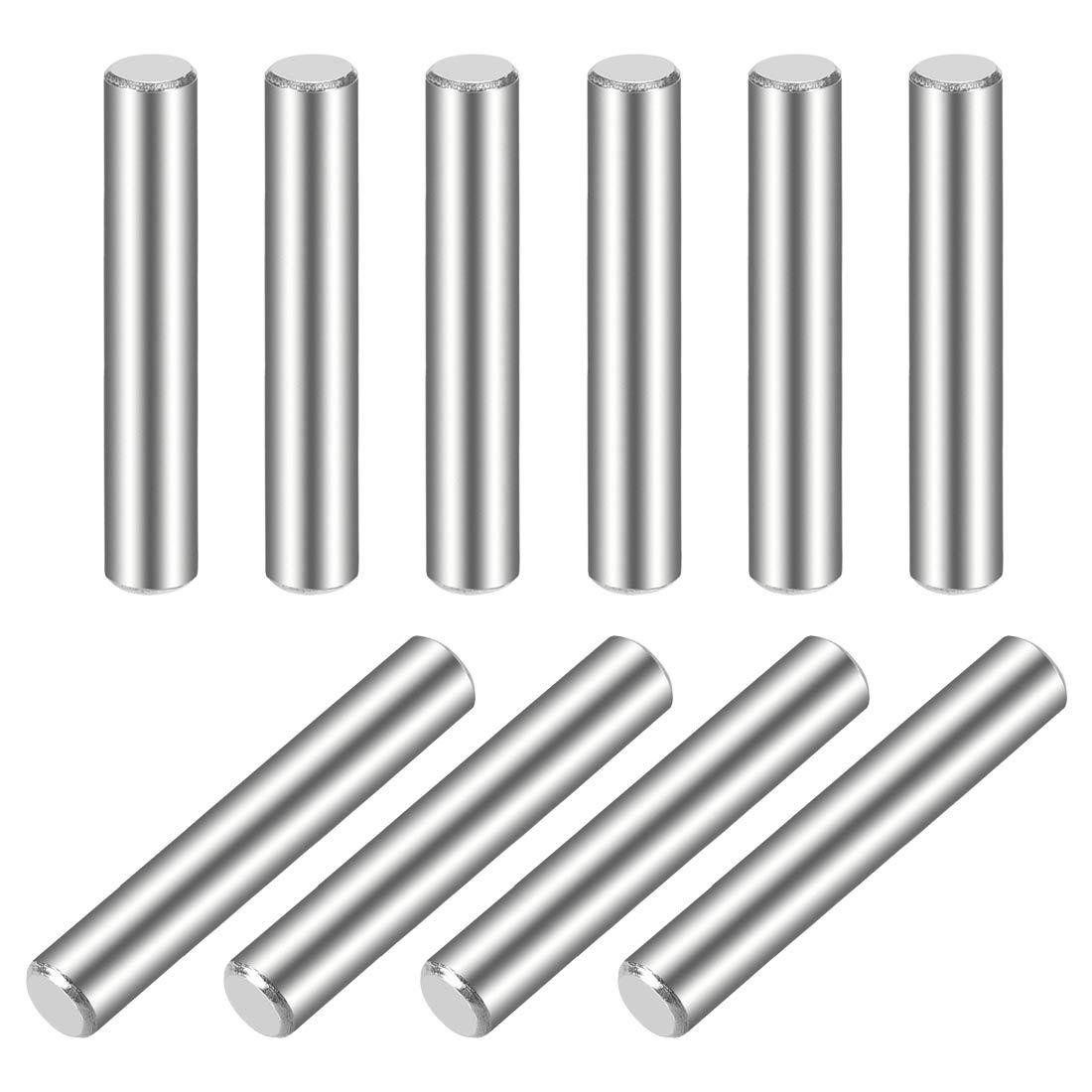

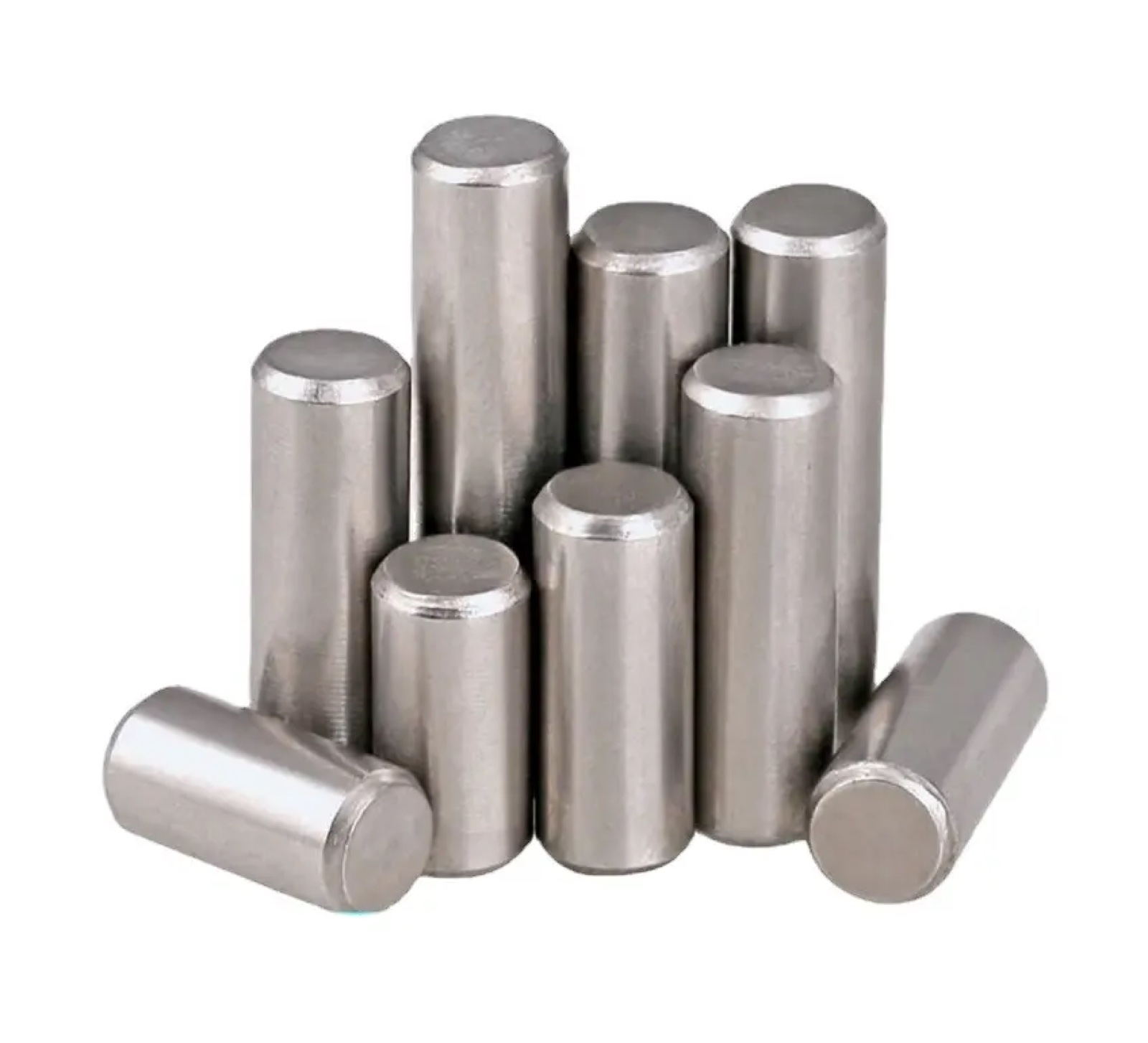

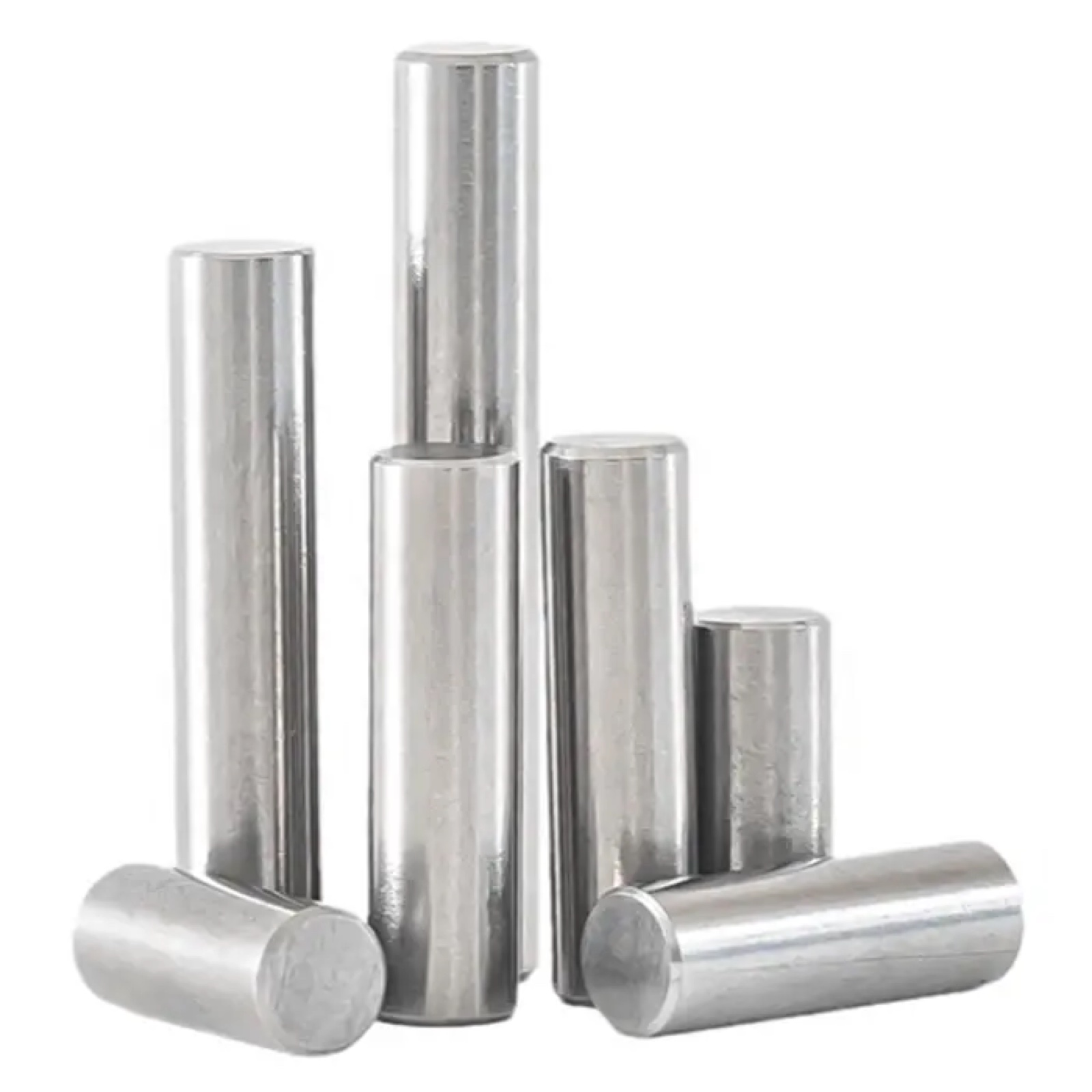

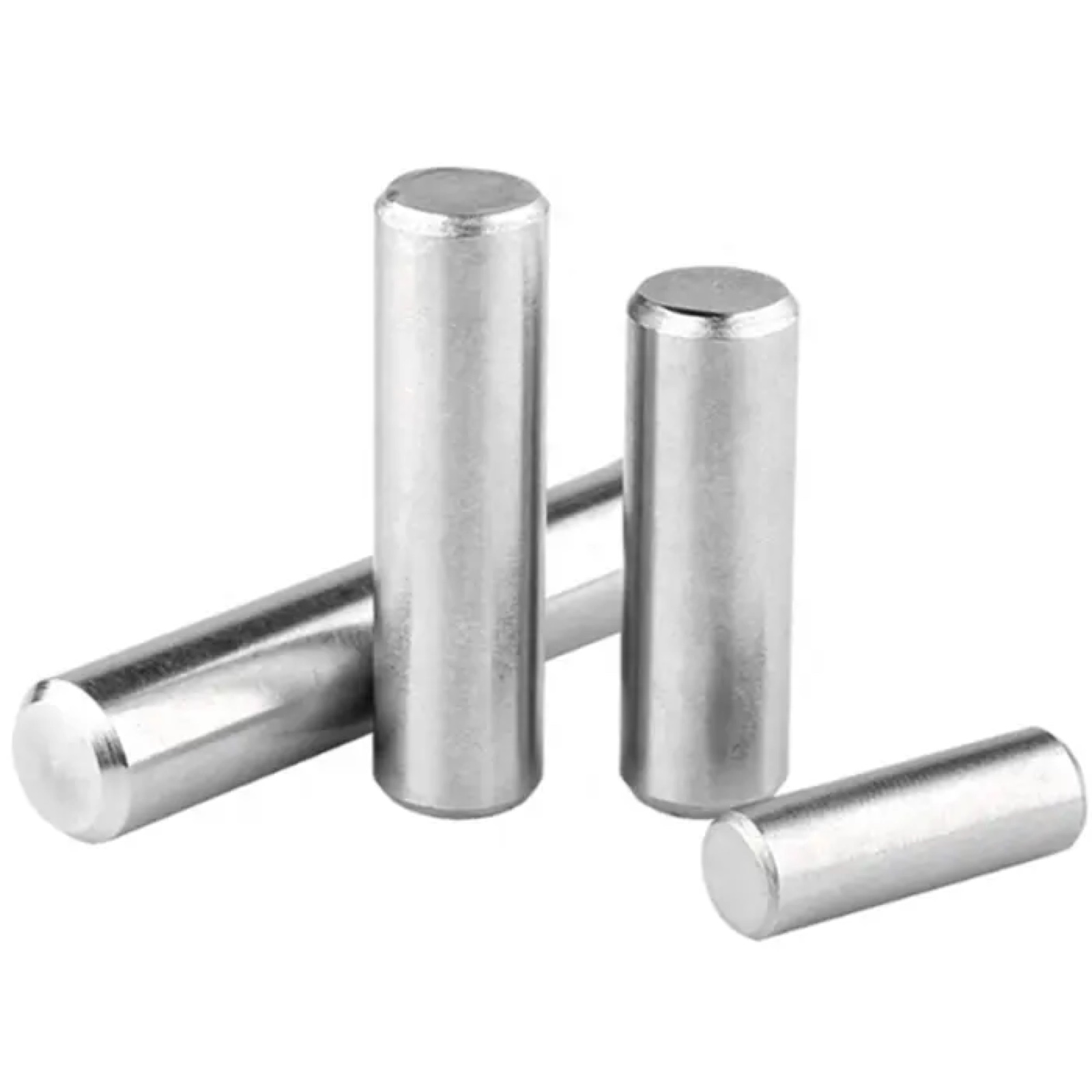

Dowel pin
A Dowel Pin (SS Dowel Pin) is a precision-ground cylindrical fastener used to align, locate, and secure machine parts in exact positions. It provides accurate positioning and strong shear resistance in mechanical assemblies, molds, fixtures, and jigs.
Features:
- High dimensional accuracy and tight tolerance fit
- Excellent shear strength and load stability
- Corrosion and wear resistant
- Smooth surface finish for easy insertion
- Provides precise alignment between components
- Suitable for repeated assembly and disassembly
| Field | Details |
|---|---|
| Fastener Type | Dowel Pin |
| Material Grade | Hardened Steel |
| Size | 8mm x 50mm |
| Application Type | Precision Machinery & Assembly |
MATERIAL OPTIONS
- Stainless Steel (SS304 / SS316)
- Hardened Alloy Steel
- Carbon Steel (case hardened)
- Brass (light-duty applications)
APPLICATIONS
- Machine tool assemblies
- Jigs, fixtures, and tooling systems
- Automotive engine and gearbox alignment
- Mould and die industries
- Structural alignment in mechanical assemblies
- Precision engineering equipment
